Session Values

Session Values allow you to extract data from a connector's API response during one action and reuse it in subsequent actions within the same endpoint. This is essential for APIs that require multi-step workflows where later requests depend on identifiers or tokens returned by earlier ones.

A common example is the Shopify Order Edit API, where you must first begin an edit session to obtain a calculatedOrder ID, then reference that ID when committing line item changes.

When to Use Session Values

Use a Get Session Values action when your integration needs to:

• Extract an identifier from an API response and pass it to a later save action (e.g. Shopify's calculatedOrder.id)
• Map response list items to child entities by matching on a shared property (e.g. matching Shopify line items to Order Lines by SKU)
• Chain API calls where the second call requires data returned by the first

Overview: Shopify Order Line Edits

Shopify's Order Edit API follows a begin/commit pattern:

1. Begin Edit — POST /orders/{id}/edits/begin.json returns an orderEdit object containing a calculatedOrder with an id and its lineItems
2. Modify Lines — Use the calculatedOrder.id to add, remove, or update line items
3. Commit Edit — POST /orders/{id}/edits/{calculatedOrderId}/commit.json finalizes the changes

Session Values bridge step 1 and step 3 by extracting the calculatedOrder.id from the begin response and making it available as a mappable property in the commit action.

Adding a Get Session Values Action

Within an endpoint's Data Source tab, select On Save from the sidebar to view the save action tree.

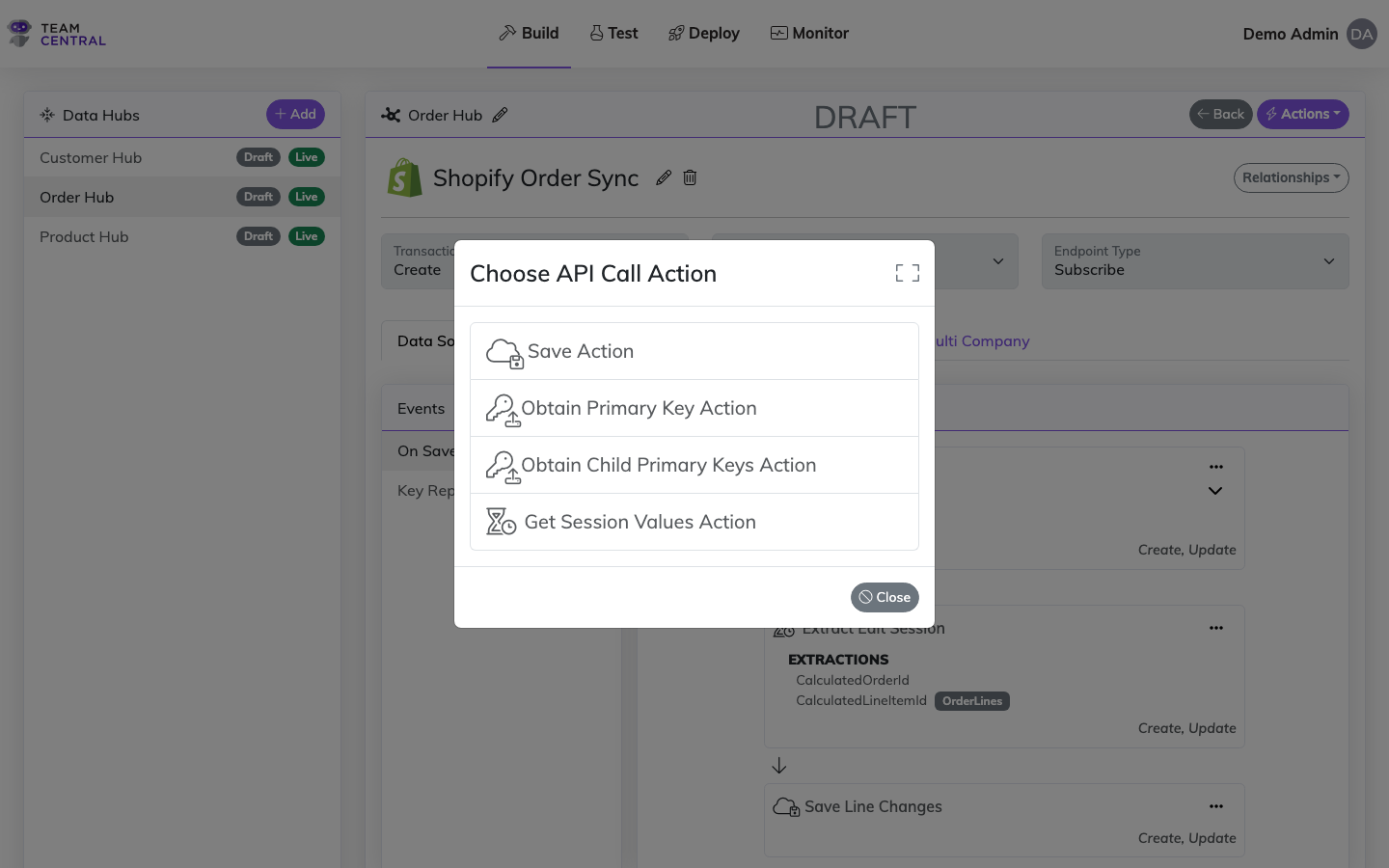

To add a new Get Session Values action:

1. Click the ... menu on the parent save action card
2. Select Add Action
3. Choose Get Session Values Action from the list

Configuring Extractions

Click the ... menu on a Get Session Values action card and select Edit to open the configuration form.

Each Get Session Values action contains one or more extractions. An extraction defines how to pull a value from the connector's API response and make it available to subsequent actions.

Basic Extraction (Header-Level Value)

Use a basic extraction to capture a single value from the API response, such as the calculatedOrder.id:

Field	Description	Example
Model Property	The name this value will be known by in property mappings	CalculatedOrderId
Connector Property	The JSON path in the API response to extract from	calculatedOrder.id

Once configured, CalculatedOrderId becomes available as a Session Value in the property picker for all subsequent actions. You can use it in save URLs (e.g. /orders/{OrderNumber}/edits/{CalculatedOrderId}/commit.json) or in property mappings.

Collection Extraction (Map to Children)

Enable the Map to Children toggle when the API response contains a list that needs to be matched to child entities. For example, mapping Shopify's calculatedOrder.lineItems to your Order Lines:

Field	Description	Example
Model Property	The child property to populate	LineItemId
Connector Property	The JSON path for the value to extract from each list item	calculatedOrder.lineItems.id
Target List	The child entity list to map into	OrderLines
Model Match Property	The child entity property to match on	SKU
Connector List Property	The JSON path to the list in the response	calculatedOrder.lineItems
Connector Match Property	The list item property to match against the model	sku

This tells the engine: "For each item in calculatedOrder.lineItems, find the Order Line whose SKU matches the item's sku, and set that Order Line's LineItemId to the item's id."

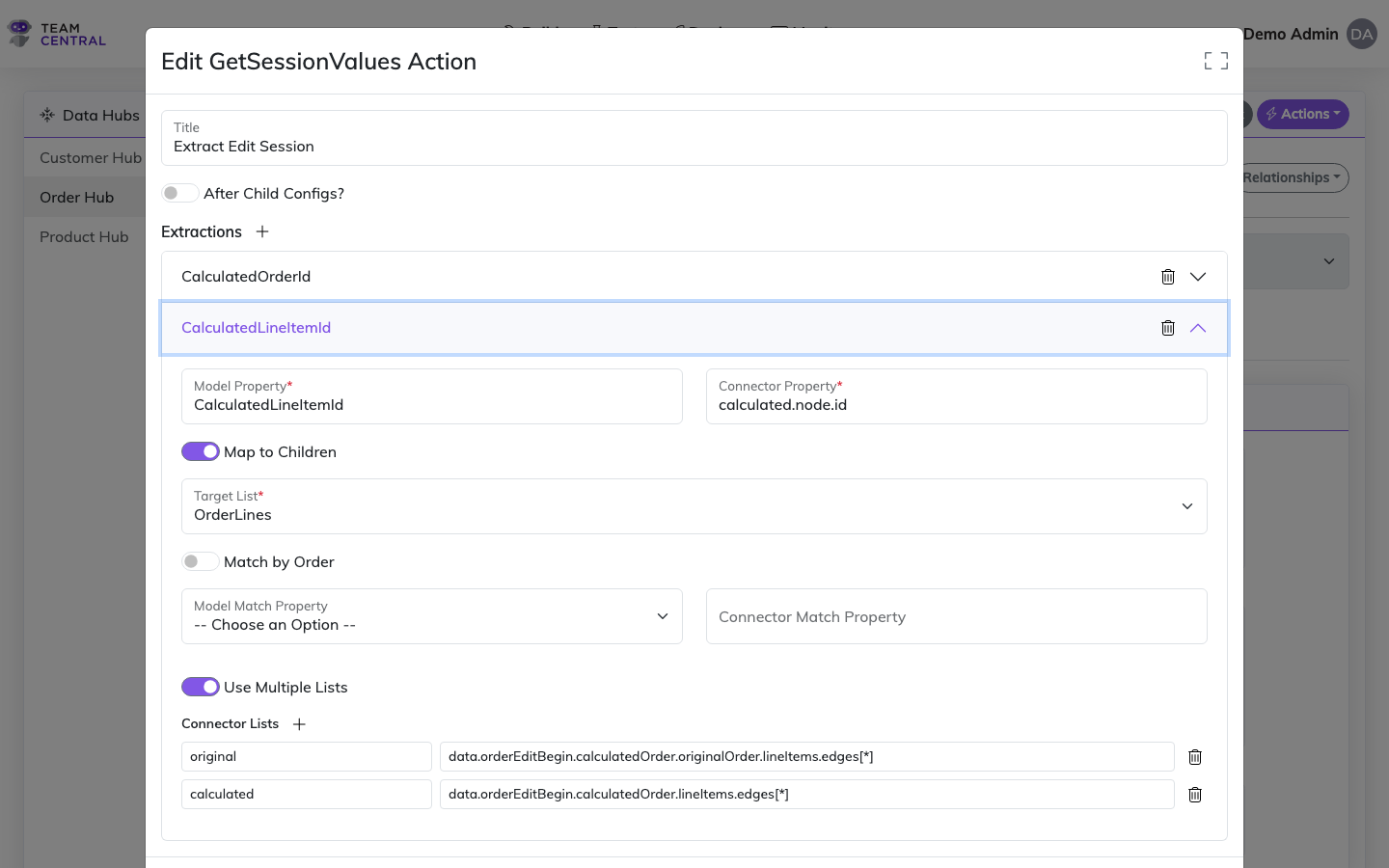

Multiple Lists Extraction

Some APIs return two or more parallel lists in the same response with no cross-reference between them. For example, Shopify's orderEditBegin mutation returns both originalOrder.lineItems.edges and calculatedOrder.lineItems.edges — the calculated list has the IDs you need, but contains no pointer back to the original line items.

Enable the Use Multiple Lists toggle to correlate items from separate lists by their position (index). Each list is given a user-chosen prefix that becomes a namespace in the connector property paths.

Field	Description	Example
Model Property	The child property to populate	CalculatedLineItemId
Connector Property	Path to the value to extract, prefixed by list name	calculated.node.id
Target List	The child entity list to map into	LineItems
Model Match Property	The child entity property to match on	Id (PrimaryKey)
Connector Match Property	Path to the match value, prefixed by list name	original.node.id
Connector Lists	A set of prefix → list path pairs	See below

Connector Lists Configuration

Each row in the Connector Lists editor maps a prefix name to a JSON path:

Prefix	Path
original	data.orderEditBegin.calculatedOrder.originalOrder.lineItems.edges[*]
calculated	data.orderEditBegin.calculatedOrder.lineItems.edges[*]

At runtime the engine resolves both lists, zips them by index, and constructs a composite object per position:

{
  "original": { "node": { "id": "gid://shopify/LineItem/15810547548386", ... } },
  "calculated": { "node": { "id": "gid://shopify/CalculatedLineItem/15810547548386", ... } }
}

The Connector Match Property (original.node.id) is evaluated against this composite to find the matching child entity, and the Connector Property (calculated.node.id) extracts the value to store as a session value on that entity. Downstream actions can then reference {SESSION:CalculatedLineItemId} in URL templates or property mappings.

WARNING

All lists in a multiple-list extraction must have the same number of items. If the lengths differ, the extraction is skipped and a warning is logged.

Execution Order

Session Values respect the action execution order within the action tree:

1. Pre-child actions run first (in array order) — this is where Get Session Values should typically be placed
2. Child config saves run next
3. Post-child actions run last (actions with "After Child Configs?" enabled)

A Get Session Values action can only reference values from actions that execute before it. The visual action tree shows a Child Saves separator when post-child actions are present, making the execution boundary clear.

After Child Configs?

Enable the After Child Configs? toggle on a Get Session Values action if you need to extract values from an API call that runs after child entities have been saved. This is uncommon but useful when a parent API call depends on child data being committed first.

Using Session Values in Property Mappings

Once a Get Session Values action is configured, the extracted values appear automatically in the Central Property picker under a Session Values group. This means you can select them just like any other schema property when building request or response mappings.

Session values are scoped to the schema they target:

• Header-level extractions (no "Map to Children") appear in the parent entity's property picker
• Collection extractions (with "Map to Children") appear in the child entity's property picker, scoped to the target list's schema

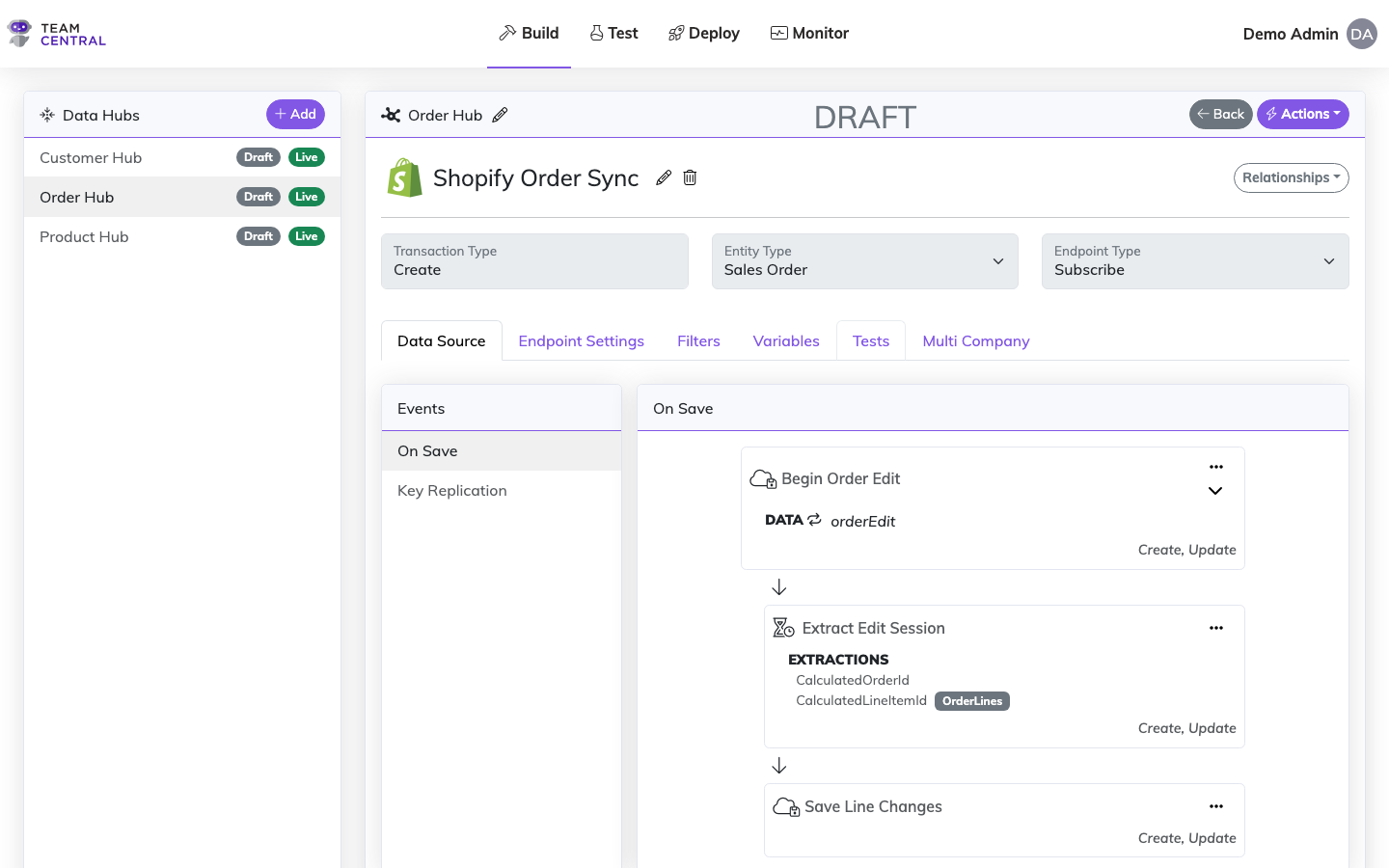

Example: Complete Shopify Order Edit Flow

Here is how the full save action tree looks for a Shopify order line edit integration:

Action	Type	Purpose
Begin Order Edit	EndpointSave (root)	Calls POST /orders/{id}/edits/begin.json
→ Extract Edit Session	GetSessionValues	Extracts CalculatedOrderId and maps LineItemId to Order Lines
— Child Saves —		Child endpoints save their line item changes
→ Save Line Changes	EndpointSave (after children)	Calls POST /orders/{id}/edits/{CalculatedOrderId}/commit.json

The key insight is that CalculatedOrderId is extracted once by the Get Session Values action, then referenced by the commit action's URL template — without needing to hard-code or manually pass the value between steps.

Using Multiple Lists for Disconnected Responses

When the API response contains disconnected parallel lists (like Shopify's GraphQL orderEditBegin mutation which returns both originalOrder.lineItems and calculatedOrder.lineItems with no cross-reference), the Extract Edit Session action uses a multiple-lists extraction:

Extraction	Type	Config
CalculatedOrderId	Scalar	Connector Property: data.orderEditBegin.calculatedOrder.id
CalculatedLineItemId	Multiple Lists	Match on original.node.id → extract calculated.node.id

The multiple-lists extraction correlates the original and calculated line item arrays by position, matches each original line item to the corresponding child entity, and stores the calculated line item ID as a session value — which is then available as {SESSION:CalculatedLineItemId} in the orderEditSetQuantity mutation.
